Don't Let 'Small Parts' Dictate Your Precision: A Deep Dive into SYK's Fixed-End Ball Screw Support Units, the Unseen Cornerstone of Precision Automation

In the vocabulary of precision manufacturing, the ball screw system acts as the "backbone," responsible for precisely converting a motor's rotational motion into linear movement. However, the stability and lifecycle of this entire system often depend on its most overlooked component: the Ball Screw Support Unit, specifically the fixed end that bears the full axial thrust.

This is the critical battleground for achieving "Zero Backlash."

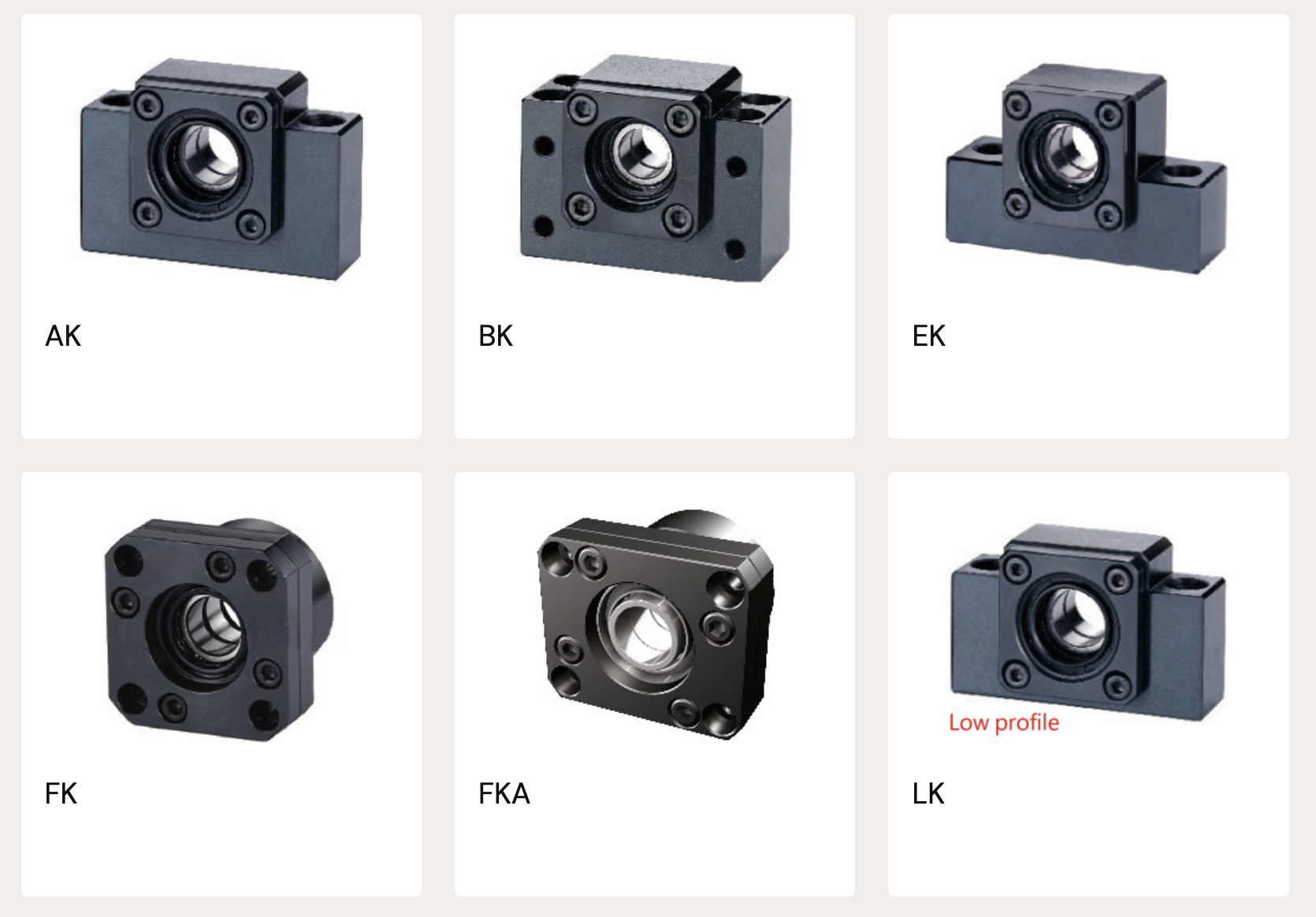

As experts in precision motion components, SYK (SONYUNG) understands that the differences between our fixed-end support unit models (e.g., the square AK, BK, EK, LK series and the round FK, FKA series) are not merely aesthetic. They represent a strategic choice in application philosophy, spatial layout, and performance requirements.

This article will dissect the technical core of SYK's entire fixed-end series—the angular contact bearings and preloading mechanism—to provide a concise selection guide for high-level managers and procurement decision-makers.

The Core of Stability: The "Zero Backlash" Promise of Angular Contact Bearings and Preloading

Regardless of the form factor, the design core of every SYK fixed-end support unit revolves around two non-negotiable principles: extreme rigidity and zero axial play.

1. Entire Series Equipped with Angular Contact Ball Bearings (ACBB)

Unlike standard deep-groove bearings, which are primarily designed for radial loads, SYK's entire fixed-end series (the "K" end) exclusively uses Angular Contact Ball Bearings.

• Technical Value: ACBBs are inherently designed to withstand both radial and axial loads simultaneously. This is precisely the high-axial-thrust application for which ball screws are intended. This design provides the essential high rigidity for the entire system, ensuring the screw does not displace minutely under high-speed acceleration/deceleration or heavy cutting, fundamentally guaranteeing the equipment's positioning accuracy.

2. Preload Processing: The "Ready-to-Install" Zero-Backlash Guarantee

Every fixed-end support unit from SYK is shipped with its bearings already preloaded and packed with grease in a clean-environment facility. This makes the product truly "ready-to-install" right out of the box.

• Operational Value: Preloading is the process of introducing a precise axial load between the bearings to completely eliminate internal clearance. This critical, high-skill process is completed in SYK's factory by experienced technicians using specialized jigs. For the customer, this means:
• Zero Backlash: Ensures zero axial play for high-precision positioning and superior rigidity.
• Zero Labor Hours: Your assembly team no longer needs to perform the complex, time-consuming, and high-risk tasks of bearing preloading and lubrication. This directly reduces assembly error rates and labor costs.

Design Philosophy: The Strategic Layout of Square vs. Round Types

SYK offers a diverse range of form factors to meet the extreme spatial and mounting demands of different mechanical structures.

The Devil in the Details: DF/DB Configurations and Customization Options

Excellent decision-makers know that success lies in the details. When selecting a fixed-end support unit, two key details directly impact final performance.

1. The Strategic Choice of Bearing Configuration: DF vs. DB

The paired bearings in the fixed end are typically offered in two standard configurations, with further options available.

• DF Configuration (Face-to-Face): This is the general standard setup. It provides moderate axial rigidity and has a slightly higher tolerance for minor misalignment. It is the go-to choice for most general-purpose machinery.
• DB Configuration (Back-to-Back): Available as an option. This configuration provides the highest axial rigidity and resistance to overturning moments (moment rigidity). Its superior stiffness makes it ideal for high-end CNC machine tools enduring heavy cutting shocks or heavy-duty automation systems with high-impact inertial loads.

2. The Value of Optional Features: Grease Ports and Dampers

• Optional Grease Ports: Select models can be optioned with a grease port (nipple). This allows for centralized lubrication or periodic re-greasing during operation. For equipment running 24/7 or in high-temperature conditions (e.g., AS/RS systems in logistics centers), this ensures the bearings remain optimally lubricated, significantly extending MTBF (Mean Time Between Failures) and safeguarding operational uptime.
• Optional Dampers: Dampers (or cushion pads) are primarily used to absorb minor shocks and vibrations. This provides extra protection in equipment with specific requirements for noise or vibration suppression (e.g., medical diagnostic instruments).

Manager's Frequently Asked Questions (FAQ)

Q1: SYK's fixed-end units come pre-greased. What tangible efficiency gains does this offer our assembly line?

A1: The tangible gain is "process simplification and error elimination." In the traditional model, your team must source the correct grease, calculate fill amounts, and manually pack the bearings before assembly. This is not only labor-intensive but also highly susceptible to premature bearing failure due to improper filling, grease incompatibility, or contamination. SYK's "ready-to-install" promise transfers this high-risk, time-consuming process into our quality-controlled system, delivering zero labor hours and zero risk to your line.

Q2: How should we trade-off between the cost and performance of the Round (FK/FKA) vs. Square (AK/BK) series?

A2: Round types (FK/FKA) typically offer higher precision potential and better spatial efficiency, but their installation requires extremely high concentricity in the machine bore, making mounting more difficult and costly from a machining perspective. Square types (AK/BK) are known for their easy installation and high versatility, often with better cost control.

Rule of thumb: If your equipment design demands absolute axial alignment and you have high-precision boring capabilities (like a high-end grinder), choose FK/FKA. If you are prioritizing installation efficiency and robust versatility, the square series is the more cost-effective choice.

Q3: What specific applications demand the ultra-rigid DB bearing configuration?

A3: The DB (Back-to-Back) configuration provides maximum rigidity and moment load resistance, making it a strategic choice for extreme conditions. Key applications include:

1. The drive end of heavy-cutting CNC machine tools that must withstand
   immense cutting forces.
2. Heavy-duty automation with high-inertia starts and stops, which create high-impact loads.
3. Applications with high cantilevered loads or significant vibration risk.
   Choosing DB is like purchasing high-grade "performance insurance" for your equipment's long-term stability.

Q4: Doesn't a grease port add a contamination risk? Why would we still want one on logistics equipment?

A4: A grease port does not inherently add risk; rather, it's a form of proactive prevention. For AS/RS systems or stacker cranes in logistics centers, that equipment is expected to run continuously for years. The bearing's life is dictated by the grease's life. Even high-quality grease degrades after prolonged operation. An optional grease port allows maintenance staff to perform periodic or centralized re-lubrication, effectively extending the bearing's operational life (L10) and minimizing the risk of unplanned downtime. For an industry that strives for "zero downtime," this benefit far outweighs any perceived risk.

Q5: What if I need to use these support units in a cleanroom? What can SYK provide beyond the standard product?

A5: For cleanroom applications, SYK offers systematic customization to ensure our Ball Screw Support Units meet your cleanliness standards. This includes:

1. Surface Treatment: We can provide options like electroless nickel plating for corrosion resistance and low particle generation.
2. Lubrication: We use special cleanroom-grade, low-outgassing grease.
3. Cleaning & Packaging: Products undergo a final cleaning and are vacuum-sealed in a clean environment to ensure they meet cleanliness requirements upon unboxing.

Q6: How do I determine if my system needs the high-performance FK (Round) series instead of the more economical AK/BK (Square) series?

A6: The decision comes down to "the difficulty and cost of axial alignment." The round (FK) type is designed to be pressed into a precision-machined bore, leveraging the machine's own manufacturing accuracy to ensure perfect alignment. If your equipment design already incorporates high-precision boring, the FK series offers a cleaner, higher-performance solution. Conversely, if the machine structure is complex or cannot guarantee perfect bore concentricity, the square (AK/BK) designs are more practical, as they have a higher tolerance for slight installation misalignment.

Conclusion: Stability is the Ultimate Competitive Advantage

In the world of precision automation, no component is insignificant. The choice of a fixed-end support unit is the critical decision that ensures your ball screw system delivers the maximum precision and reliability it was designed for—right from day one.

With its full line of angular contact bearings, "ready-to-install" preloaded commitment, and diverse customization options for different applications, SYK provides that trusted cornerstone. For enterprises seeking stable, high-efficiency operations and a lower TCO (Total Cost of Ownership), SYK's fixed-end support units are a key strategic component for gaining a long-term advantage in a competitive market.
